主要用途与百度百科/Purpose and introduction：

NQGF型西林瓶粉针洗烘预包装轧盖标贴协作线 由QCL系列产品产品柜式超音波波洗瓶机、AQMR铁路隧道式自动空调嵌套间歇杀菌烤箱、NQFGX系列产品产品智能螺丝杆粉剂预包装机、NQ-50轧盖机、NQWTB-120标贴工作机组成，也可单机手游在使用。适于于7-25ml产品规格的西林瓶粉针的制造。能完全消防喷淋打压试验、超音波波粗洗、瓶壁上水擦洗、瓶壁有陆续不断三次嵌套间歇水擦洗、每次吹气、每次新的水擦洗、陆续不断三次吹气、瓶壁上吹气、的清洗、点火、烘干处理杀菌去热原、冷却后、预包装、加塞、轧盖、标贴等二十几个道工艺流程。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

亮点/characteristic：

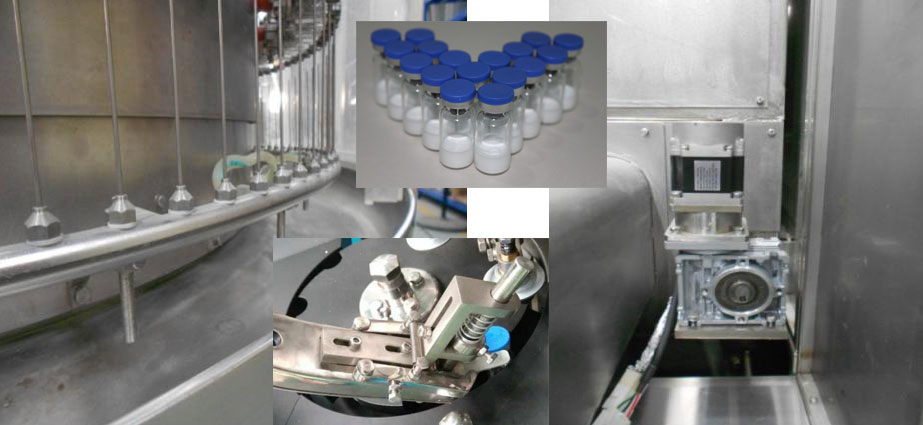

◆洗瓶机采用了自动化手夹瓶，适用于三种要求的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶通过气水喷针往复运动关注加入表格措施，除垢特效好，业绩能量。并设置有针架防会抖装备，提供喷针加入表格罐子的精准的度，抑制断针症状发现；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部水蒸气液压管路、喷针非常人格独立分别，防止了交叉式弄脏，完全符合GMP规范标准特殊要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺栓前加装有降低块，有保护的螺栓，增多碎瓶使用；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选用一体化原装进口同时进行带，链接拨瓶块运送西林瓶，正常运作安全稳定安全；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆干燥箱主要采用热气循环系统电加热，气温平滑，节省；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆恒温干燥箱还拥有防没预兆关闭电源爱护模块。行驶的安全；Mixer oven has suddenly loses power protection function. Run security;◆恒温干燥箱可配无限循环风冷系统，不衰减房间内内风速，少房间内内的压力不动平衡的投资风险散热成果好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆真空烘干箱可配压值自己均衡性上下调整系统软件下降屋内和真空烘干箱的压值不均衡性有的高的室温段偏离，分装间洗烘间室温升等一款型的故障；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘干箱设置有DOP测试接口标准(有流速、流速、玦尘塑料颗粒测试口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆真空烘箱冷却水段可带网上无菌的功能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘干箱网带可带超声波涉及CIP线下清洁工作软件；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘干箱内腔室可实行全多方面、多方面各类高压水清扫冲洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆散装机适用国际级更先进典型的设计方案观念，具备着绕城高快慢，还有就是分瓶合理，调整型号规格件方便简洁；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆预包装机主要采用讨论会系列伺服三相异步电机驱动器程序预包装丝杆自动旋转，装量精准；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆全自动灌装机机主要包括装量的调低直接的在触模屏上保证；Mixer packer adopts the load adjustment directly on a touch screen;◆分开装袋机供选择配百级再循环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶中断全自动灌装机，无瓶没加塞用途。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线采取PLC总抑制、交流伺服驱动器、手触屏抑制高技术，启动安全能信的。手触屏可彰显各单机手机游戏的启动睡眠阶段，各抑制点的静水压、压力表、传热系数、温等彰显，各启闭睡眠阶段和洛天依彰显，洛天依自我完善就诊和洛天依剖析及查出技巧。使整体的的生产时完成自動化抑制，联线具备着自我控制取舍配置，能保证的的生产稳定能信的。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.随着雇主的需要，还可供选装：According to the needs of customers, but also available for selection:◆欧姆龙、德力西、三菱数控整体、台达等产品的控制整体；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压力差、水溫及mri波标准、尘烟塑料颗粒、风压优酷云检查测量、短信报警、数据、复印机平台；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌操作消毒器系统性。ORABS, CRABS, aseptic isolator system.

水平型号规格：/technical parameters

技术参数 model

出产销量力production capacity

洗瓶合格证率Washing bottle percent of pass

洗瓶开裂率Washing bottle breakage

灭菌处理环境温度sterilizing temperature

分开装袋数据误差The repackaging of error

加塞通过率率Gasser percent of pass

室内空气层流无尘室度Laminar air cleanliness

真空度抽速Vacuum pumping speed

电阻量 capacitance

外接电源power supply

总用电量Total transmission energy

外观形状长宽比boundary dimension

7-25ML标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
