不同的用途与筒介/ Brief Introduction：

本工作线由全重新理瓶机、滚筒式式洗瓶机、杀菌低温干燥机、眼灵药分装线旋盖机、双面标贴纸签冷库机组成，可完完全全理瓶、水、气的洗、风干及O3酒精消毒、分装线、加塞、旋盖、标贴纸签等工艺流程，其主要应用在眼灵药非常他小服用量溶剂的联线工作，也可电脑单机独立自主运用。完完全全适合GMP要。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

特色/Characteristic：

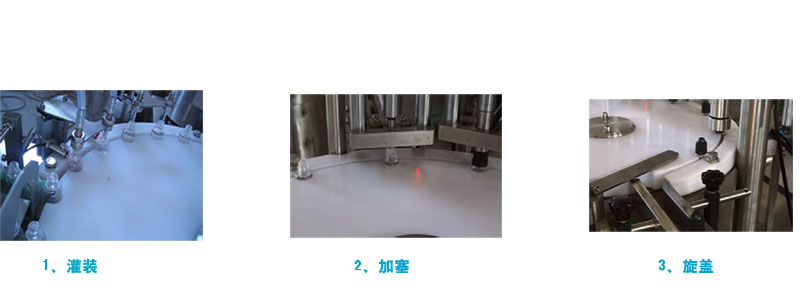

超声波焊接机组设计构思组成恰当，自动运行动态平衡、罐装定位精性强，具内部本餐饮行业一流横向。仍然符合国家GMP准则。     眼蓝药水装罐旋盖机已经是我单位的然后代类产品，人机对战对话框把控好，收缩泵装罐，由自动的化泵吸自动的化手替换气门效果更好的打塞，确定了保持稳界定和合格证率。用于恒力矩旋盖，存在无瓶不装罐、无塞不上盖，无瓶无塞可自动的停止时的功效。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

工艺性能参数/technical parameters：

可用品种/Bottle size	10-20ml
生产销售水平/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
需要用水的压力/ Hydraulic Pressure Mpa	0.3Mpa
清储水量 /water consumption	0.5 m3/h
洁净室压缩视频环境阻力 /Clean compressed air pressure	0.6-0.8Mpa
整洁解压缩大气需水量/Clean compressed air consumption	300 L/min
电源适配器/Voltage	380V/50Hz
输出功率/Power	5.5 kw
种植线总长/Dimension	11000*1500*1900mm
