用处与间介/Brief Introduction：

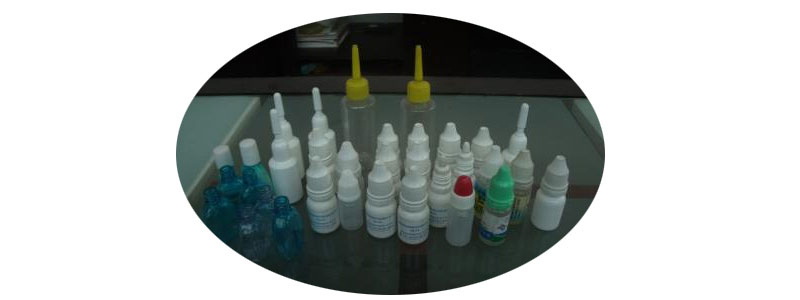

该设备适使用于于2-30ML各式各样材料做的椭圆形扁形pp塑料或玻离瓶的眼蓝药水分装生产线、网上烟油等小摄入量分装生产线.该设备由高的精密度轴承测量范围贷款机构可以具备测量范围等分盘标记上塞上盖;促进度轴承齿轮传动齿轮可以具备旋盖头的什降;恒扭距旋盖;消化吸收泵检定分装生产线;接触屏把控.无瓶不分装生产线,不带内塞,外盖.具标记精密,齿轮传动齿轮平衡,自我保护瓶塞,检定准.控制简单易行等显著优点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优点和缺点/Characteristic：

◆微租赁场景人物风格的设定在、装量正确、实操方便快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机电源发动机转速可采取直流变频空调直流变频空调调速器。the mainframe running speed is stepless frequency conversion.◆的生总产值自功化学发光法掌控。the product quantity can be controlled. ◆多种多样错误码表明技能(如低大气压力。无灌装设备、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆重新停止时功能表，对某一组件展现接连无灌装生产线、无内塞前提可重新停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

高技术产品参数/Main Technical Parameters：

适用人群外形尺寸Filling Volume	2-30ml
研发技能Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装生产线的精密度Filling Precision	≤±1%
主机电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自動上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
额定功率 Power	2.0 kw
机设备净含量Weight	550 kg
外观尺寸Dimension	1800*1000*1500mm
