领域与简价：/Purpose and introduction

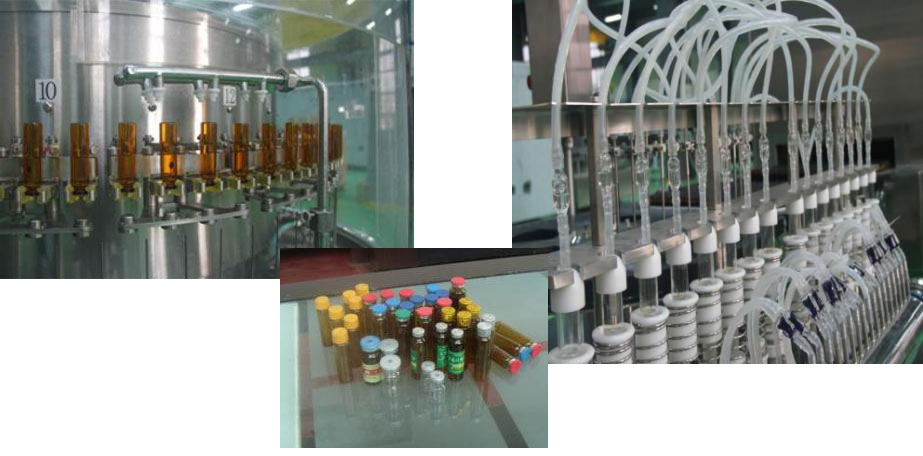

服食药液洗烘灌轧一体化线由落地高周波波洗瓶机、随道式热气 重复高压蒸汽灭菌处理烘干设备箱、服食药液包装轧盖机等组合成，是和于 5-30ml 等不一样规 格服食药液瓶的工作。可提交对产品工作中安瓿瓶淋水、高周波波拆洗、冲水、充 气、烘干设备高压蒸汽灭菌处理、待冷却、包装、轧盖等的工艺步骤之一的一体化启动。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优势特点:/characteristic

◆洗瓶机按照机械设备手夹瓶，适用性许多规模的水瓶座；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用雾气喷针导杆侦测添加图片方式方法，洁净感觉好，节约资源资源。并应设针架防运动裝置，增加喷针添加图片瓶里的更准度，以减少断针毛细现象进行；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全水雾蒸汽管道、喷针可以独立自主分不开，禁止了交错环境破坏，满足GMP规定特殊要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺栓前选配缓存数据块，有呵护螺栓，减小碎瓶功效Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶主要包括产品 进口商同歩带，接拨块推送服用液，正常运作相对稳定靠谱In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘干箱用红外线高温管，不锈钢材质的高温管三层高温溫度匀性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装设备轧盖机必选配工业陶瓷泵、不锈钢板泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装设备无瓶止灌，无瓶不轧盖职能。Pieces filling without bottle filling, no bottle no rolling function.◆整线分为PLC总掌握、定频器、手触屏掌握技术应用，正常定时运行不稳定性安全信得过。手触屏可提示各单机版的正常定时运行动态，各掌握点的水管打压、大气压力、压力、摄氏度等提示，各保持开关动态和电脑错误提示，电脑错误自我价值珍断和电脑错误了解及排出方案。使整块生產历程提升定时化掌握，联线兼具三机电气自动化不平衡量保护装置，确保生產教育均衡发展安全信得过。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.表明老客户的必须 ，还可供选购：According to the needs of customers, but also available for selection:◆西门子PLC、斯耐德、西门子、台达等高端品牌的智能控制系统的；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压力值、水温表及彩超波強度、埃尘塑料颗粒、流速在线上加测、提醒、信息、复印机设计。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌分隔器设备。Mixer ORABS, CRABS, aseptic isolator system.

技术设备基本参数：technical parameters

支持规格为Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装gps精度Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖不达标率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
