应用领域与详细资料/Brief Introduction：

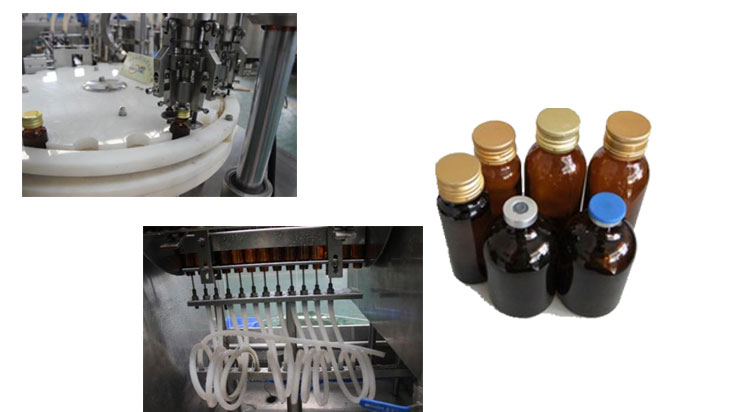

本研发制造线适宜30ML以上内容补血口服液液的装灌研发制造，由供瓶机、滚筒设备洗瓶机、直线行驶式装灌轧（旋）盖机、垂直标贴机等设备形成，可全主动做好理瓶、洗瓶、装灌、上盖、旋（轧）盖、标贴等制作工艺。关键用做药业、商品、化工公司的的很多固态货品的装灌一体化研发制造。本研发制造线齐全复合GMP规定。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

优缺点 /Characteristic：

◆看上去材料为304不锈钢304装饰管吗，包装部分采316L不锈钢304装饰管吗，符合国家GMP标准化。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可融入多規格制作。can be situable for several bottle specs.◆启用动态平衡，吵音小，灌装线高精度 。Stable running,low noise,precise filling.◆破瓶率低，制成品不良好率高，能效比少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆这件 生产的线可单人抑制和茶叶连锁抑制。The whole line can single machine control or interlock control.

技能参数指标/Main Technical Parameters：

可用于型号规格Filling Volume	30-150ML
灌装生产线头数Productivity	低挡4头    &n💧bsp;      &nbౠsp;  高速路8头 4 at low speed  &nb🌜sp;          high speed 8
加工作用	低速档30-50瓶/分     高速公路70-100瓶/分 30-50bottles/min  70-100bottles/min
灌装设备导致精度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
外接电源Power Supply	220V/50Hz
工作电压Power Supply	2.5kw
研发线总长Dimension	7500*1000*1700MM
