主要用途与简价/Brief Introduction：

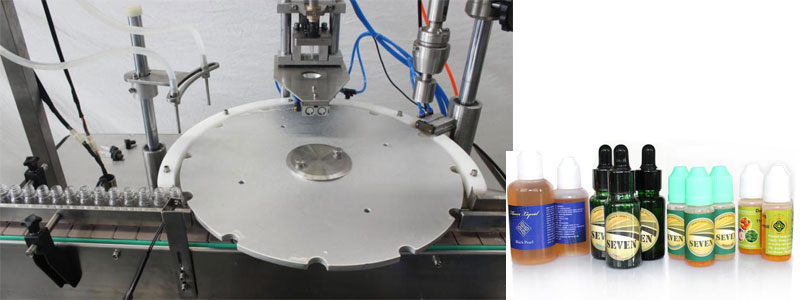

该机应用做2-30ML多种的材料的圆圈扁形泡沫塑料或安全玻璃罐的眼药粉灌装生产线设备设备.该机由高要求轴承单位测量范围单位提高测量范围等分盘标记上塞上盖;下载相对速度慢轴承单位齿轮变速箱提高旋盖头的上升下降;恒扭力旋盖;胃排空泵压力容器检验灌装生产线设备设备;触屏屏掌握.无瓶不灌装生产线设备设备,没有内塞,外盖.具标记透彻,齿轮变速箱平稳性,庇护酒盖,压力容器检验准.的操作比较简单等独到之处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优点和缺点/Characteristic：

◆微笔记本调节、装量精确性、实操简单方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机电源转速比可做好无极变速交流变频变频调速。the mainframe running speed is stepless frequency conversion.◆生产的量自功降钙素原检测调整。the product quantity can be controlled. ◆各种常见故障提示信息性能(如低压力。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自然停止时功效，对任意轮轨有多次无包装、无内塞情况报告可自然停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技木参数表/Main Technical Parameters：

适宜尺寸规格Filling Volume	2-30ml
生产销售专业能力Productivity	30-60瓶𝓀/分  70-100瓶/分30-60bottles/min    70-100bottles/min
装灌的精密度Filling Precision	≤±1%
电压 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自主上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
瓦数 Power	2.0 kw
机子毛重Weight	550 kg
性能规格尺寸Dimension	1800*1000*1500mm
